Senza ABC 1418, conduttore ABC, filo ABC

Informazioni di Base

Featured Products

Informazioni di Base
  • Model No.: SANS 1418 ABC, abc conductor, abc wire
  • Applicazione : Alto
  • Voltaggio : Cavo a bassa tensione e media
  • Corrente : DC & AC
  • Materiale di isolamento : XLPE
  • Materiale della guaina : La reticolazione
  • Forma Materiale : Filo tondo
  • Wire Materiale del centro : Red Copper Wire
  • Certificazione : ISO , CCC
Informazioni Aggiuntive..
  • Trademark: Lonheo
  • Packing: Steel Drum, Wooden Drum, Steel Wooden Drum
  • Standard: SANS
  • Origin: China
  • HS Code: 8544492100
  • Production Capacity: 200km/Month
Descrizione del prodotto

PPLICATION

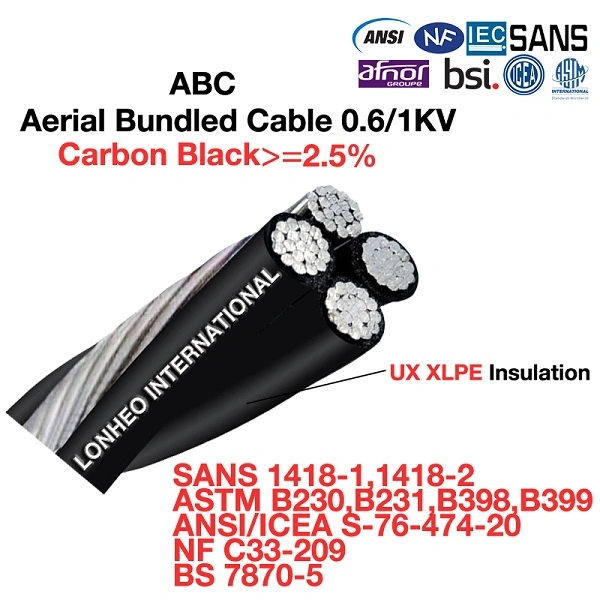

ABC aerial bundled cable is suitable for transmitting line and distributing line of rated voltage 0.6/1KV and others. It is widely used at tall buildings, traveling development area and rural area or other place the cost of underground network is expensive.


Basic Information
Code Name
ABC
Rated Voltage (Uo/U)
0.6/1KV
Temperature Range
-15ºC-90ºC


CONSTRUCTION
Conductor: Copper or Aluminium or Aluminium Alloy
Insulation: XLPE


CABLE  STANDARDS
Chinese National Standards, IEC, SANS 1418-1,SANS1418-2, BS 7870-5, ASTM B230,B231,B398,B399, NF C33-209 and etc. upon request.

The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the JiangNan Cables laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved.

Table 01 Aerial Bundled Cable-ABC(South Africa Standard Sizes)-SANS 1418-1



Type of conductor
 or core

Norminal cross-sectional area mm2

Nubmer
 of wires
Min.

Diameter of conductor mm

Resistance at 20ºC   Ω/km Max.

Breaking force(N)

Thickness of insulation (mm)

Outer diameter of core(mm)

Min.

Max.

Min.

Average

Min.

Min.

Max.

Phase or auxiliary or non-strain-bearing netural(aluminium)

+16

6

4.6

5.1

1.91

2070

1.2

0.98

7.0

7.8

25

6

5.8

6.3

1.2

3300

1.4

1.16

8.6

9.4

35

6

6.8

7.3

0.868

4500

1.6

1.34

10.0

10.9

50

6

7.9

8.4

0.641

6200

1.6

1.34

11.1

12.0

70

12

9.7

10.2

0.443

8900

1.8

1.52

13.3

14.2

95

15SANS

11.0

12.0

0.320

12300

1.8

1.52

14.6

16.0

120

15

12.5

13.5

0.253

15600

1.8

1.52

16.3

17.5

150

15

13.9

15.0

0.206

19200

1.8

1.52

17.1

18.6

Service connection(aluminium)

16

6

4.6

5.2

1.91

2070

1.2

0.98

7.0

8.0

25

6

5.6

6.5

1.2

3300

1.4

1.16

8.6

9.6

Service connection(copper)

10

6

-

4.2

1.83

3600

1.2

0.98

6.2

7.0

16

6

-

5.3

1.15

5760

1.2

0.98

7.2

8.0

25

6

-

6.6

0.727

8750

1.4

1.16

8.6

9.6



Number and nominal diameter of wires
mm









Supporting
core(aluminium)

54.6

7x3.15

9.2

9.6

0.630

16600

1.6

1.34

12.3

13.0

70

7x3.50

10.0

10.4

0.500

20100

1.6

1.34

12.9

13.6

+Auxiliary conductors or cores only




1

2

Nominal cross sectional area of supporting conductor mm2

Nominal cross-sectional areas of phase conductors mm2

54.6

25,35,50,70,95

70

70,95,120

95

95,120,150

When a supporting core is specified in a tender invitation,the combinations listed in Table 02 below:

Table 02


Find this product online: wxjncable.com | Cables & Accessories
Aerial Cable(Overhead Line) | ABC-Aerial Bundled Cable(SANS 1418)

Table 03-Aerial Bundled Cable-ABC(South Africa Custimized Size)


Type of conductor or core

Norminal cross-sectional area mm2

Nubmer of wires

Diameter of conductor mm

Resistance at 20ºC   Ω/km Max.

Breaking force(N)

Thickness of insulation (mm)

Outer diameter of core(mm)

Min.

Max.

Min.

Average

Min.

Min.

Max.

Phase or auxiliary or non-strain-bearing netural(aluminium)

16

7/1.65

4.6

5.1

1.91

2070

1.2

0.98

7.0

7.8

25

7/2.15

5.8

6.3

1.2

3300

1.4

1.16

8.6

9.4

35

7/2.55

6.8

7.3

0.868

4500

1.6

1.34

10.0

10.9

50

7/2.99

7.9

8.4

0.641

6200

1.6

1.34

11.1

12.0

70

14/2.59

9.7

10.2

0.443

8900

1.8

1.52

13.3

14.2

95

19/2.59

11.0

12.0

0.320

12300

1.8

1.52

14.6

16.0

120

19/2.99

12.5

13.5

0.253

15600

1.8

1.52

16.3

17.5

150

30/2.59

13.9

15.0

0.206

19200

1.8

1.52

17.1

18.6

Service connection(aluminium)

16

7/1.65

4.6

5.2

1.91

2070

1.2

0.98

7.0

8.0

25

7/2.15

5.6

6.5

1.2

3300

1.4

1.16

8.6

9.6

Service connection(copper)

10

7/1.35

-

4.2

1.83

3600

1.2

0.98

6.2

7.0

16

7/1.69

-

5.3

1.15

5760

1.2

0.98

7.2

8.0

25

7/2.19

-

6.6

0.727

8750

1.4

1.16

8.6

9.6

Supporting core(aluminium alloy)

16

7/1.71

5.1

5.2

2.053

5070

1.4

1.16

7.9

8.0

25

7/2.15

6.4

6.5

1.314

8000

1.4

1.16

9.2

9.3

35

7/2.48

6.6

7.5

0.986

10300

1.6

1.34

10.7

10.8

50

7/2.89

7.7

8.4

0.720

14200

1.6

1.34

11.9

12.0

54.6

7/3.15

9.2

9.6

0.630

16600

1.6

1.34

12.3

13.0

70

7/3.50

10.0

10.4

0.500

20100

1.6

1.34

12.9

13.6
